Pulp and paper screens in South Africa

Screen baskets & plates

Screening, filtration and separation media for the paper and pulp industry, backbone of the paper production process and turning raw material into products including tissue. Knotter screens and hydrofoils, high-pressure and tertiary screen baskets and rotors, drum washers and thickener drums.

Also supplied

Coating screen cylinderElectro-beam drilled hole cylinderHydra-pulper / extraction / strainer plateScrew press baskets and platesEDM plates (pulp washer, Ti)Drum washers & thickener drumsDrum classifier meshChrome-plated basketsElectropolished plates

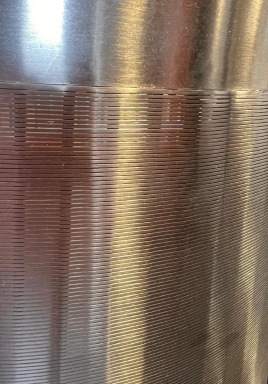

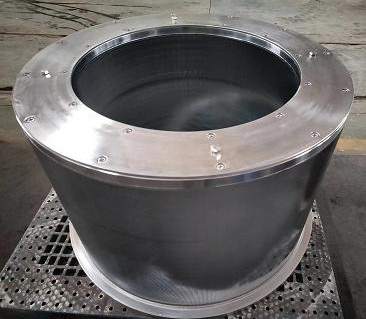

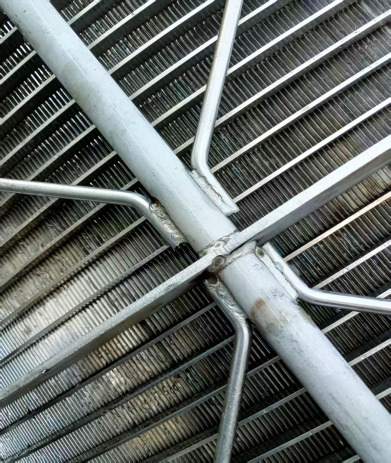

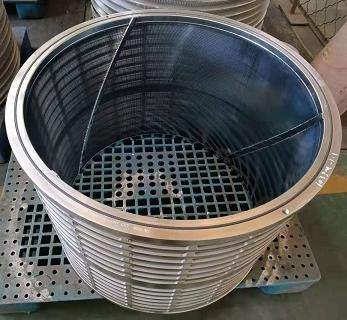

Wedge wire slotted screen cylinders

Precision laser-cut notches welded by argon arc for strength and longer life. Digester top separator basket: ID 2400 × 3200 mm high, roundness ≤ 0.8 mm, slot 4–8 mm, cylindricity ≤ 1.5 mm, anti-clogging and self-cleaning. Also chip feeding inline strainers, sand trap conical baskets and extraction liquor screening.

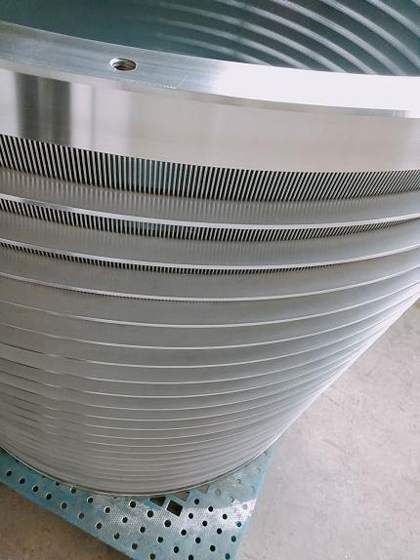

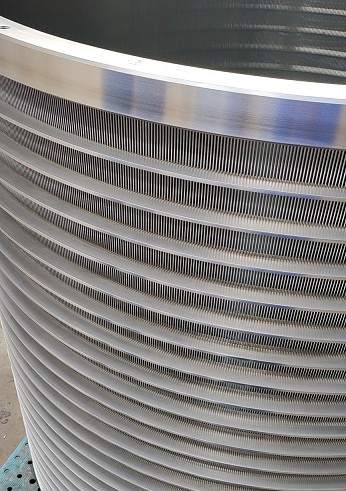

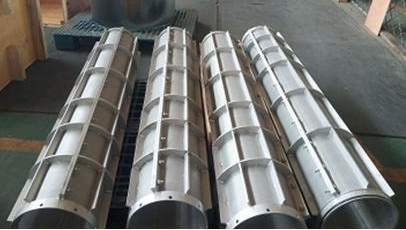

No-welding & drilled hole screen cylinders

No-welding (mechanical locking) slotted cylinders give higher open area, high purity and a smooth surface against blinding and pegging. Drilled hole cylinders for inflow and outflow, coarse screens and headbox baskets: hole diameter ≥ 1.0 mm, smooth or profiled surface, plate thickness 5, 6 or 8 mm. Screw press screen baskets and plates also supplied.

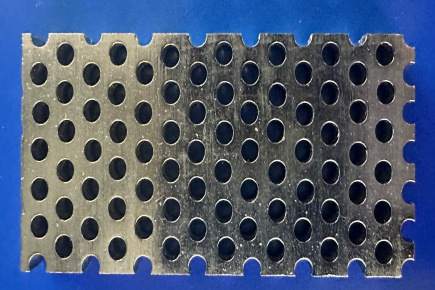

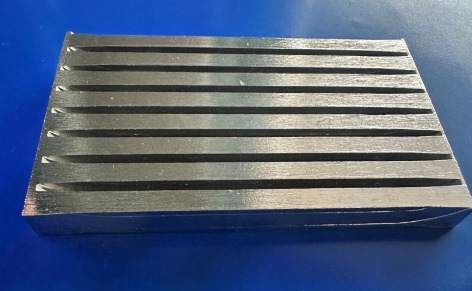

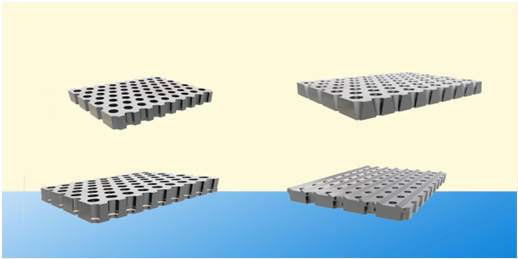

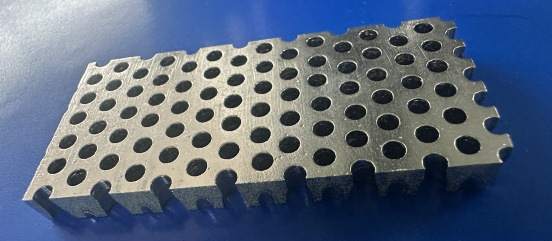

EDM drilled plates & hole types

Small holes drilled in thick plate by electrical drilling for pulp washers, screw presses, dewatering, thickening and wastewater cleaning. 3–5° conical holes, ≥ 1.0 mm, plate 2–12 mm, give lower resistance, higher open area and screening capacity and uniform distribution. Electropolished 316L or 254SMO. Hole types: straight, conical drill, step drilled, corrugated with profile. Materials: SS316 (standard, higher chemical resistance), SS304 (suits OCC mills, higher strength and wear), 316L wires + 304 rings, 2205 duplex.

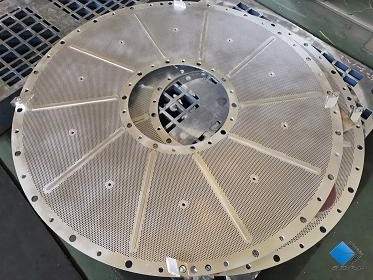

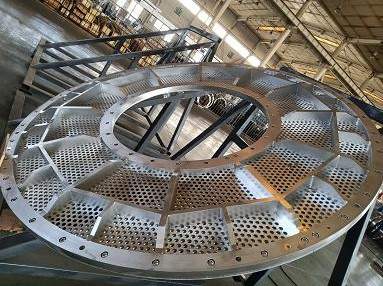

Pulper, extraction & strainer plates

Hydra pulper, extraction and strainer plates in a customised, more durable design. Materials: SS304, 316, 420, 630 and 2205 duplex, heat treated to HRC 40–48.

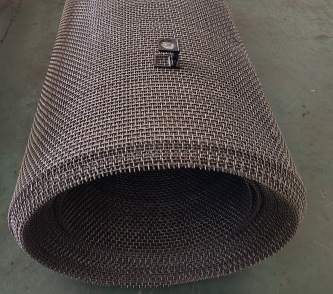

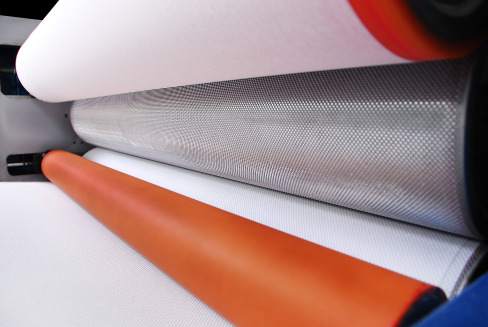

Paper machine mesh

Mesh for Fourdrinier machines (a moving mesh belt drains water to form a continuous paper web, for newsprint, writing paper and packaging) and cylinder machines (a mesh-covered perforated cylinder dips into pulp, forming a thin layer of fibres). Widths 1–10 m.
