Welded Wire Mesh, Razor Wire, Barbed Wire & Security Fencing

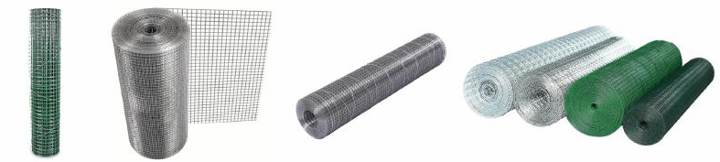

Welded wire mesh

The most common wire mesh, also known as welded wire netting, hardware cloth or monkey wire. Galvanised or stainless steel wire for corrosion resistance and low maintenance, used for fencing, animal enclosures, security screens, concrete reinforcement, landscaping and industrial shelving. Material: electro-galvanised, hot-dipped galvanised or stainless steel (201/304/316), with optional PVC coating.

Opening (in)	Opening (mm)	Wire gauge (BWG)
1/4 × 1/4	6.4 × 6.4	22, 23, 24
3/8 × 3/8	10.6 × 10.6	19, 20, 21, 22
1/2 × 1/2	12.7 × 12.7	16–23
5/8 × 5/8	16 × 16	18, 19, 20, 21
3/4 × 3/4	19.1 × 19.1	16–21
1 × 1/2	25.4 × 12.7	16–21
1-1/2 × 1-1/2	38 × 38	14–19
1 × 2	25.4 × 50.8	14, 15, 16
2 × 2	50.8 × 50.8	12–15
2 × 4	50.8 × 101.6	12–15
4 × 4	101.6 × 101.6	12–15
4 × 6	101.6 × 152.4	12–15
6 × 6	152.4 × 152.4	12–15
6 × 8	152.4 × 203.2	12, 13, 14

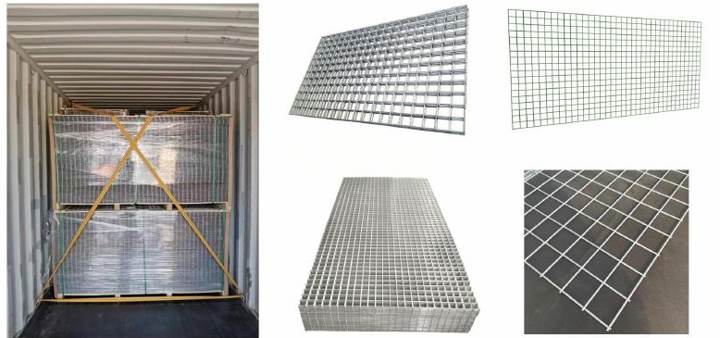

Welded wire mesh panels

Construction mesh and fence panels from mild steel, galvanised or stainless steel wire, welded into square or rectangular openings by automatic machines. Used in construction, agriculture, manufacturing and landscaping for fencing, animal enclosures, security screens, wall and floor concrete reinforcement, shelving and partitions. Finishes: galvanised after welding, or powder coated.

Opening (in)	Opening (mm)	Wire (BWG)	Wire (mm)
1 × 1	25 × 25	14–11	2.0–3
2 × 1	50 × 25	14–8	2.0–4
2 × 2	50 × 50	14–8	2.0–4
3 × 2	75 × 50	14–6	2.0–5
3 × 3	75 × 75	14–6	2.0–5
4 × 2	100 × 50	14–4	2.0–6
4 × 4	100 × 100	14–4	2.0–6
5 × 5	125 × 125	14–4	2.0–6
6 × 6	150 × 150	14–4	2.0–6

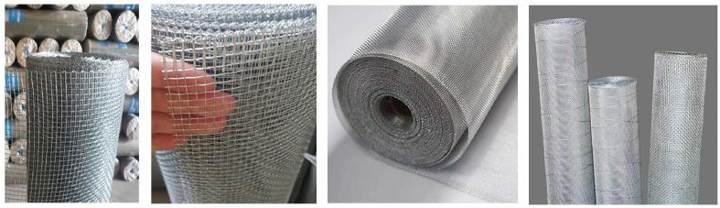

Woven square wire mesh

Galvanised woven wire mesh used to sieve grain and powder, filter liquids and gases, guard machinery enclosures, and as a substitute for wood strips in walls and ceilings. Material: mild steel, electro-galvanised or hot-dipped galvanised wire. Open or closed edge; blue galvanised finish available.

Mesh no.	Wire (mm)	Roll size (m)
1.5	1	3×100, 4×100, 5×100
2	1–1.6	3×100, 4×100, 5×100
3	0.6–1.6	3×100, 4×100, 5×100
4	0.4–1.5	3×100, 4×100, 5×100
5–6	0.35–1.5	3×100, 4×100, 5×100
8–10	0.3–1.2	3×100, 4×100, 5×100
12	0.2–1.2	3×100, 4×100, 5×100
14	0.2–0.7	3×100, 4×100, 5×100
18	0.2–0.6	3×100, 4×100, 5×100
20	0.2–0.45	3×100, 4×100, 5×100

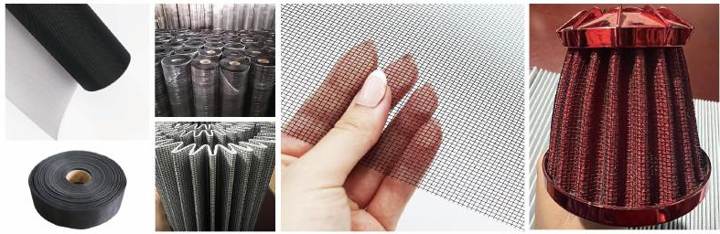

Epoxy coated wire mesh

Used as supporting layers in hydraulic and air filters, and as security screens in apartments and offices. Epoxy powder is electrostatically sprayed and cured over woven stainless, aluminium or mild steel mesh. Oil-immersion corrosion resistant, passes 96 hours of ASTM B117 salt spray, strong adhesion, flexible (folds over a 1 mm radius without surface breaks), and the cut edge wire does not fall off.

Material	Colour	Specification	Width	Length
Q195	Black / grey / red / white	Mesh 18×14, wire 0.18	20–1500 mm	30–800 m
Q195	Black / grey / red / white	Mesh 10×12, wire 0.25	20–1500 mm	30–800 m
Q195	Black / grey / red / white	Mesh 22×20, wire 0.18	20–1500 mm	30–800 m
Aluminium alloy	Black / grey / red / white	Mesh 17×15, wire 0.25	20–1500 mm	30–800 m
Aluminium alloy	Black / grey / red / white	Mesh 18×14, wire 0.21 or 0.25	20–1500 mm	30–800 m

Stainless steel wire mesh

Also called wire cloth or filter mesh: an essential material for industrial filter equipment, used in filtration, sieving, fencing, reinforcement and decoration. Precisely woven with uniform openings from fine to coarse. Grades 201, 304, 316, 316L and 904L; custom weaves in Monel 400, molybdenum, Hastelloy, nickel and biphasic alloy wire.

Weaving methods

Plain weaveTwill weavePlain Dutch weaveTwill Dutch weaveFive shed twill weaveReverse twill weave

Dutch weave examples

Mesh count	Warp (mm)	Weft (mm)	Weave
12×64	0.58	0.42	Plain Dutch
14×88	0.48	0.30	Plain Dutch
24×110	0.355	0.25	Plain Dutch
16×200	0.355	0.25	Twill Dutch
20×300	0.25	0.18	Twill Dutch
50×600	0.18	0.09	Twill Dutch
100×1000	0.10	0.051	Twill Dutch
165×1400	0.071	0.04	Twill Dutch

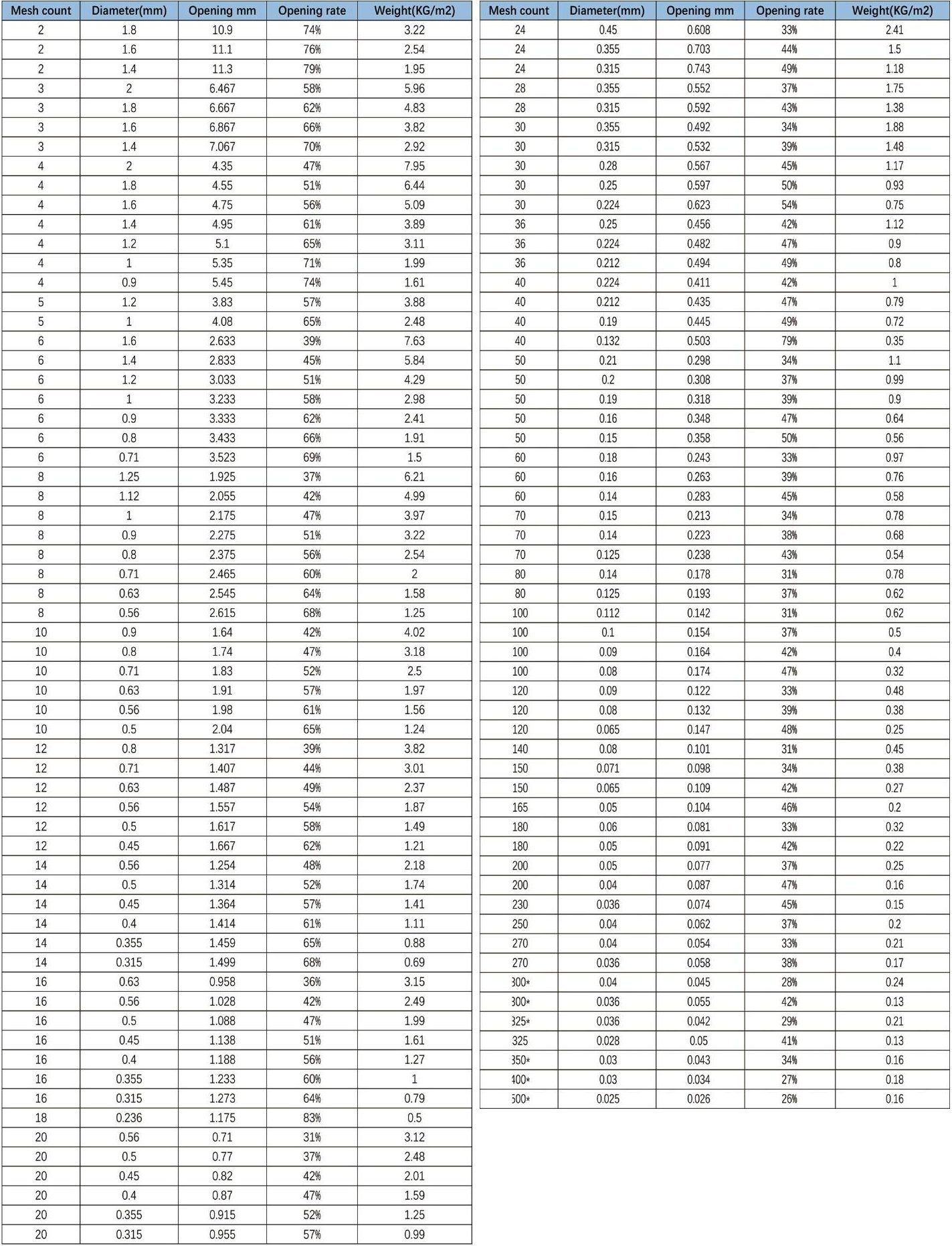

Plain weave specification: mesh count, wire diameter (mm), opening (mm), open area and weight (kg/m²)

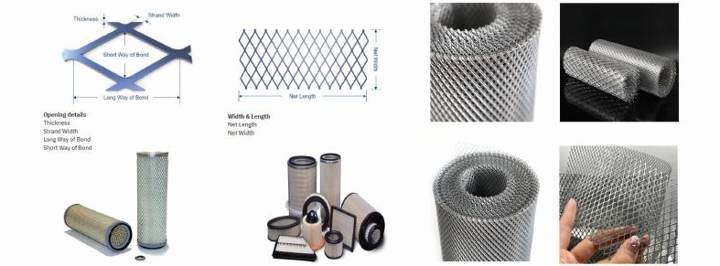

Expanded metal mesh

Also called expanded sheet or diamond mesh: a metal sheet cut and stretched into diamond openings with interconnected strands. Solid and rigid with no welds, corrosion resistant, and open for airflow and light. Used for filter support layers, HVAC, construction, architecture, automotive, safety barriers and decoration.

Specification	Range
Material	Carbon steel, galvanised steel, aluminium, stainless steel
Hole size (mm)	3×4, 4×6, 6×12, 5×10, 8×16, 7×12, 10×17, 10×12, 10×20, 15×30, 17×35 or custom
Plate thickness (mm)	0.35, 0.4, 0.5, 0.6, 0.7, 0.8, 0.9, 1.0, 1.2, 1.5
Strand width (mm)	1 or 1.25
Net width / length	Max 1.4 m / 20 m

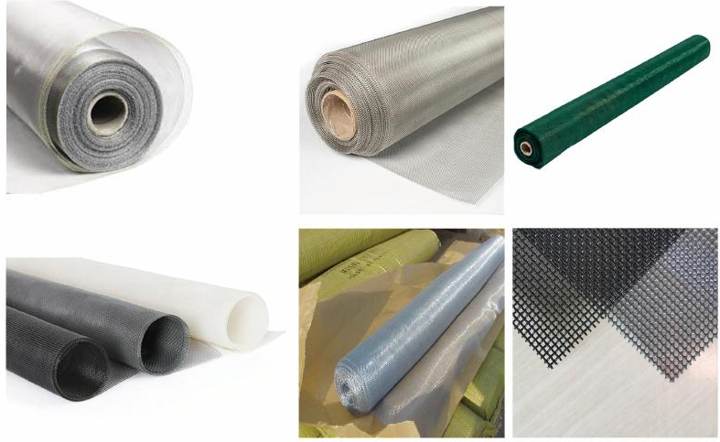

Insect screen / mosquito net

Premium materials for home, office and commercial use.

Material	Features
Galvanised	High strength and impact resistance, economical, firm structure
Aluminium	Lightweight, easy to install, rust and corrosion resistant, long life for residential windows and doors
Stainless steel	Ultra-durable, anti-pry and anti-cut, excellent rust resistance, suited to coastal and humid areas, high security
Fibreglass	Ultra-light, soft and flexible, low price, easy to replace, good air permeability
Nylon	Anti-aging, sun-resistant and fire-retardant, hard to tear, great ventilation
Powder coated ultra security	Anti-theft, anti-corrosion, anti-pet scratch, elegant appearance

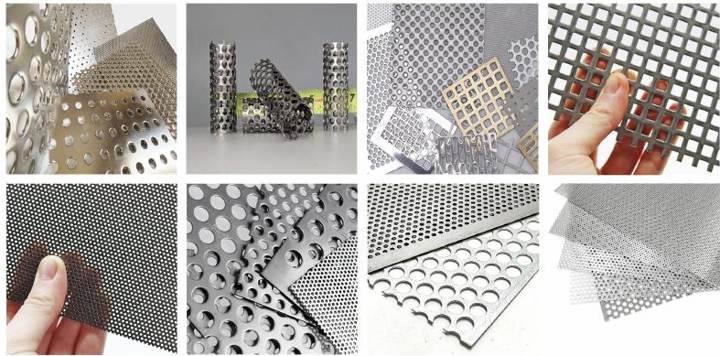

Perforated metal

Also called perforated sheet or round-hole mesh: holes punched into metal sheets in uniform or custom patterns, for architecture, automotive, HVAC, filtration, acoustics and screening. Stainless steel, aluminium, galvanised and carbon steel; Monel 400 and titanium on request. Round, square, rectangular or any custom hole shape in straight or staggered (45° or 60°) layouts. Round holes from 0.8 mm to 25 mm in sheet thicknesses from 0.4 mm to 6 mm;

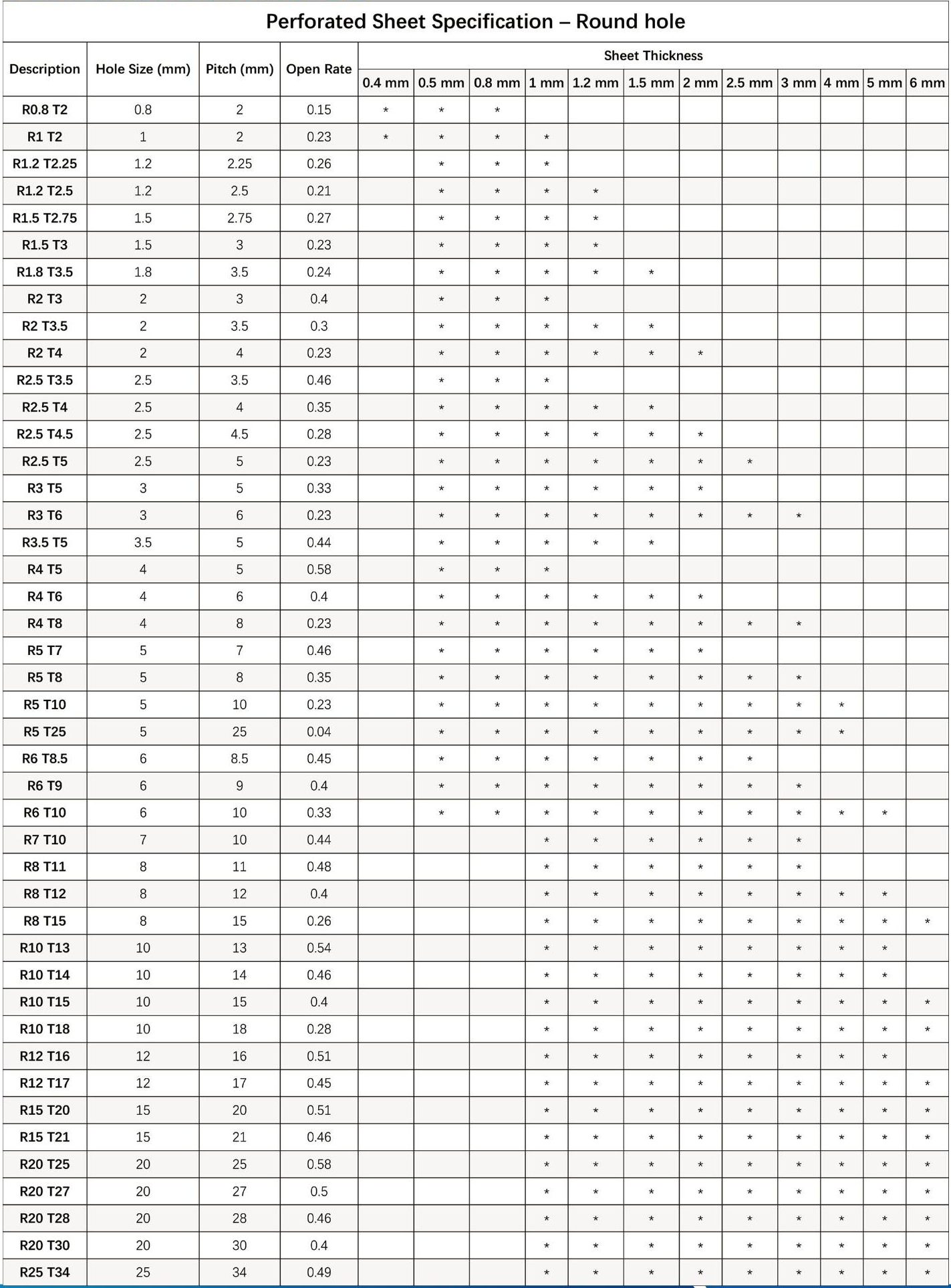

Round hole specification: hole size and pitch in mm, open rate, and available sheet thicknesses (marked with a star)

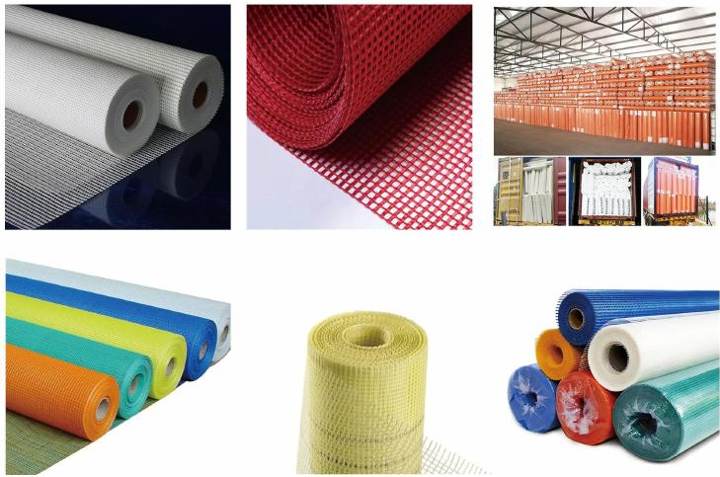

Fibreglass mesh

Plaster or stucco mesh that reinforces inner and outer walls, ceilings and floors, preventing cracking and improving structural integrity. Woven fibreglass yarn with an alkaline dispersion for tear resistance. Heavier weights suit outer walls, lighter suit inner walls.

Specification	Range
Mesh size	5×5 mm, 4×4 mm, 2×2 mm
Weight	80, 90, 100, 110, 120, 140, 145, 160 g/m²
Colour	White, yellow, blue, green, red, orange
Roll size	1 m × 50 m

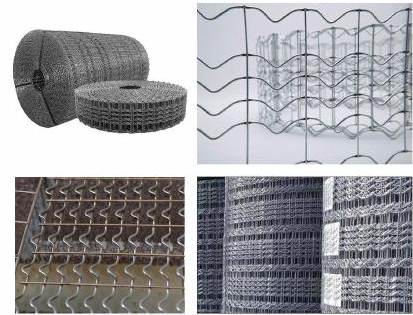

Pipeline reinforcing mesh (CWC)

Concrete weight coating mesh from low-carbon galvanised steel (cold or hot-dipped, to ASTM). Line wires are deeply crimped then welded into a wave structure that takes concrete coating easily, protecting pipelines during installation and in service. Used on subsea gas and oil, wetland gas and river-bottom pipelines.

Type	Line wires	Line wire dia.	Cross wire dia.	Mesh width	Roll length
YR-N	6	2.3–2.85 mm	2.0 / 2.05 mm	190.5 mm	110–295 m
YR-T	8	2.3–2.85 mm	2.0 / 2.05 mm	190.5 mm	110–295 m
YR-L	8	2.3–2.85 mm	2.0 / 2.05 mm	190.5 mm	110–295 m
YR-W	10	2.3–2.85 mm	2.0 / 2.05 mm	241.3 mm	110–295 m

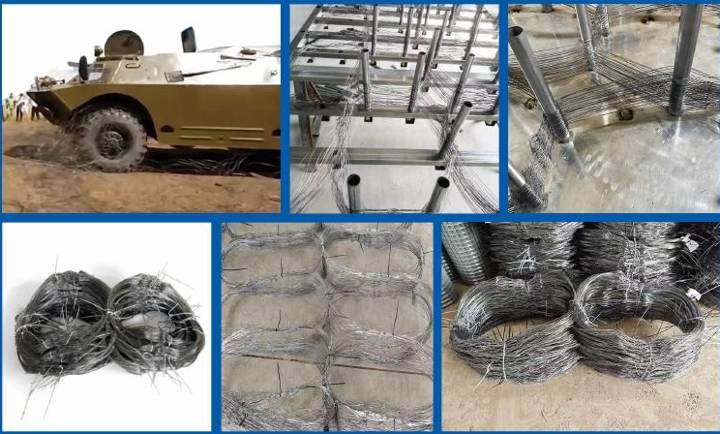

Low-visibility obstacle wire mesh (anti-tank mesh)

Also called tank trapping mesh: a defensive wire mesh woven from high-strength, corrosion-resistant iron wire that wraps the wheels of a vehicle and stops them rotating, slowing or halting its advance. Two forms: corrugated wire mesh, 10 m long, 4 m wide and 40 cm high, for laying on the ground or in grass; and wheeled wire mesh made of 10 to 20 cylindrical wire meshes, with greater stability and protection. The wire surface can be specially treated, for example with barbs. Supply for defence use may be subject to local regulations.

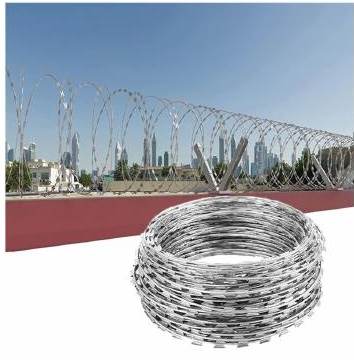

Razor barbed wire

Barbed tape for protecting boundaries and perimeters: razor-sharp points act as a physical and psychological deterrent for high-security applications. Use is restricted in some countries.

Reference	Barb length	Barb width	Barb spacing
BTO-10	10 ± 1	13 ± 1	26 ± 1
BTO-12	12 ± 1	15 ± 1	26 ± 1
BTO-18	18 ± 1	15 ± 1	33 ± 1
BTO-22	22 ± 1	15 ± 1	34 ± 1
BTO-28	28	15	45 ± 1
BTO-30	30	18	45 ± 1
CBT-60	60 ± 2	32 ± 1	100 ± 2
CBT-65	65 ± 2	21 ± 1	100 ± 2

Dimensions in mm. Blade thickness 0.5–0.6 mm; core wire diameter 2.5 mm.

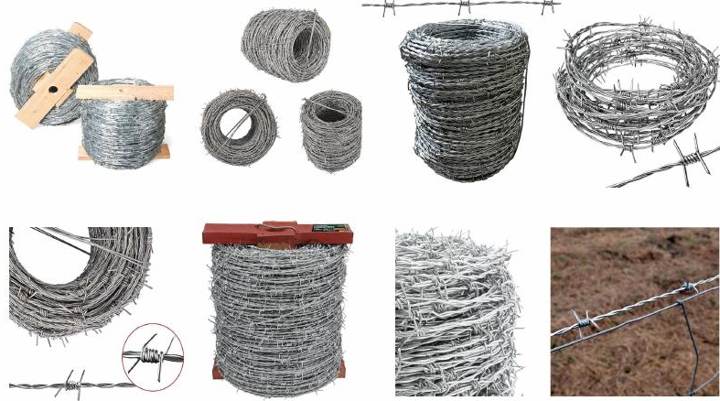

Barbed wire

Economical, easily installed fencing for farmers and ranchers, typically cattle, and adaptable to other needs. Two twisted strands with two or four-point barbs. Standard barb spacing is five inches; three inches is recommended where animal traffic, predators or security are concerns.

Material	Wire gauge (BWG)	Barb distance	Barb length
Cold or hot-dip galvanised	10×12, 12×12, 12×14, 14×14, 14×16, 16×16, 16×18	7.5–15 cm	1.5–3 cm
PVC / PE coated	1.0–3.5 mm before coating, 1.4–4.0 mm after	7.5–15 cm	1.5–3 cm

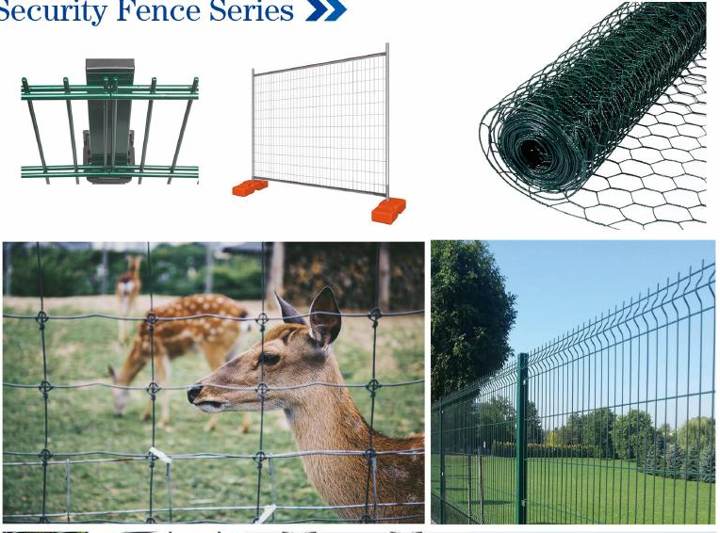

Security fence series

A range of fencing for farms, industry and security.

Twin-wire fence panelsTemporary fence panelsPVC-coated hexagonal nettingGame and farm fencingV-bend welded fence panelsHigh-security close-mesh fencingChain link fencing
